CABLE KIT FOR SOLUNA LV
RED & BLACK 2MTR 3AWG
CONNECTORS M8

3 Fase Kit 10kW / 7,1 Kwh Storage
Includes
- Solis 3 Phase Retrofit AC Connected or Hybrid DC
- WIfi or LAN connection

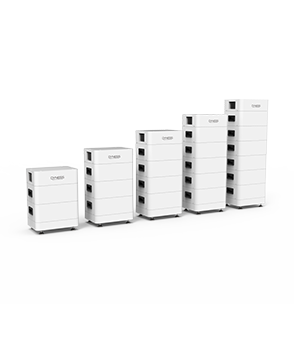

- 2x Dyness Tower 3,55kWh Upto 43kWh
- HV battery Cabling

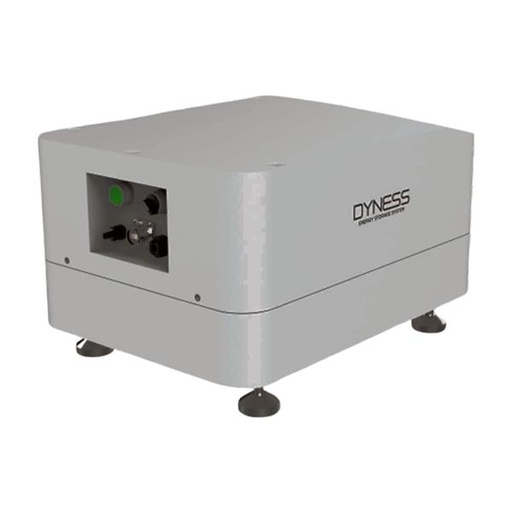

- BMS and Base unit
- 3 Fase Energiemeter
- Optional Eniris EMS

Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.
LiFeP04 technology

Scalable, Multi-scenario
1 stack = 76,8kWh
Supports 12-stacks parallel
15kWh-921kWh energy range
(3 - 15 battery's per stack)

Needs the corresponding BMS
Compatible with Solis Inverters
Warranty: 10 years / unlimited cycles

Kit Includes :
PCS 110kW / Hybrid Inverter
Cabling / EnergieMeter
Battery Stacks and BMS

Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.
LiFeP04 technology

Scalable, Multi-scenario
1 stack = 76,8kWh
Supports 12-stacks parallel
15kWh-921kWh energy range
(3 - 15 battery's per stack)

Needs the corresponding BMS
Compatible with Solis Inverters
Warranty: 10 years / unlimited cycles

Kit Includes :
PCS 25kW / Hybrid Inverter
Cabling / EnergieMeter
Battery Stacks and BMS

Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.
LiFeP04 technology

Scalable, Multi-scenario
1 stack = 76,8kWh
Supports 12-stacks parallel
15kWh-921kWh energy range
(3 - 15 battery's per stack)

Needs the corresponding BMS
Compatible with Solis Inverters
Warranty: 10 years / unlimited cycles

Kit Includes :
PCS 50kW / Hybrid Inverter
Cabling / EnergieMeter
Battery Stacks and BMS

Pre-wired communication cables for plug and play
BMS for HS51 Battery, Soft start protecting batteries and inverters from a sudden surge, Remote diagnosis and update via inverter
Pre-wired communication cables for plug and play

5.1kwh
stackable
Pre-wired communication cables for plug and play
90% DOD
Long Cycle life >6000 times
-30°~50°, IP65, LFP

Bebat bijdrage België 46kg x 2,89 €: 132,94 € included in Tax

Modèle: T-BAT-SYS-HV-5.8
Capacité utile: 5,1 kWh
Tension nominale: 115,2 V
Courant de charge/décharge max.: 35A
Altitude maximale de fonctionnement 2000m
Dimensions (L*H*P) Maître : 474*193*708mm
Poids net Maître : 72,2 kg

Bebat (Belgique) 72,20 kg x 2,89 € = 208,66 € included in Tax

T-BAT-SYS-HV-5.8
Capacité utile 5,1 kWh
Tension nominale 115,2 V
Courant de charge/décharge max. 35A
Altitude maximale de fonctionnement 2000m
Dimensions (L*H*P) Esclave : 474*193*647mm
Poids net Esclave : 72 kg

Bebat (Belgique) 68,5kg x 2,89 €: 197,97 € included in Tax

Energy meter mono phase
Two pulse outputs
Rs485 modbus
Din rail mounting
100A direct connection

Modèle: Solax X1 Hybrid 3.0
Monophasé 230V / Puissance nominale de sortie AC: 3 KW
Puissance d'entrée max CC: 4,5 KW
Tension d'entrée max CC : 600V
Courant d'entrée max CC: 14A
1 string / 2 MPPTs
Plage de tension de la batterie 85-400V
Sortie backup (secouru) intégrée
Rendement max: 97,6%
Dimensions (H*L*P) 417*482*181mm
Poids: 24kg
Garantie produit 10 ans

Model: Solax X1 Hybrid 5.0

Single-phase 230V
Nominal AC Output Power: 5 kW
Max. DC Input Power: 9 kW
Max. DC Input Voltage: 600V
Max. DC Input Current: 14A
2 MPPTs
Battery Voltage Range: 85-400V
Integrated Backup Output (Secured)
Max. Efficiency: 97.6%
Dimensions (HWD): 417 × 482 × 181 mm
Weight: 24 kg
Product Warranty: 10 years

Modèle: Solax X1 Hybrid 6.0
Monophasé 230V / Puissance nominale de sortie AC: 6 KW
Puissance d'entrée max CC: 9 KW
Tension d'entrée max CC : 600V
Courant d'entrée max CC: 14A
1 string / 2 MPPTs
Plage de tension de la batterie 85-400V
Sortie backup (secouru) intégrée
Rendement max: 97,6%
Dimensions (H*L*P) 417*482*181mm
Poids: 24kg
Garantie produit 10 ans

10KW,
2 strings (2 / 2) with DC
Switch with Screen with Pocket WiFi LAN
with AFCI
with APS
without PLC
with SPD2
with CT General

15KW,
3 strings (2 / 2 / 2) with DC
Switch with Screen with Pocket WiFi LAN
with AFCI
with APS
without PLC
with SPD2
with CT General

Modèle: Solax X1 Hybrid 10.0
Triphasé 380/415V / Puissance nominale de sortie AC: 10 KW
Puissance d'entrée max CC: 15 KW
Tension d'entrée nominale CC : 630V
Courant d'entrée max CC: 14A
1 string / 2 MPPTs
Plage de tension de la batterie 85-400V
Sortie backup (secouru) intégrée
Rendement max: 98%
Dimensions (H*L*P) 503*503*199mm
Poids: 30kg
Garantie produit 10 ans

Model: Solax X3 Hybrid 5.0

Single-phase 400V
Nominal AC Output Power: 5 kW
Max. DC Input Power: 9 kW
Max. DC Input Voltage: 600V
Max. DC Input Current: 14A
2 MPPTs
Battery Voltage Range: 85-400V
Integrated Backup Output (Secured)
Max. Efficiency: 97.6%
Dimensions (HWD): 417 × 482 × 181 mm
Weight: 24 kg
Product Warranty: 10 years

max.8.8KVA AC output, 2 MPPT's, Incl. DC switch & CTs,16A input, Tripple power battery compatible,
Smart EV charger compatible, Heat pump compatible, Generator compatible, parallel function, VPP, 3
phase unbalance output, IP65, with Wifi+Lan

Storage Kit Includes :
Mono 5kW Inverter Solis
Dyness 5kWh LV Battery
LV Cable Set
BMS Cable Set
Monitoring (Wifi or LAN)
Energy Meter Mono
Compatible with Eniris
